Worm Wheel Hobs Technical Update
As a designer and manufacturer of gear cutting tools, we
have noticed over the past 12 months, that there has been a large increase in
the need for wormwheel hobs, and worm
milling cutters. Many new customers are approaching us as, their current
supplier either, cannot design and produce what they want, or, as they can be
very complicated, simply do not want to attempt to supply.
Here at Acedes, We are delighted to inform you that we do not only supply very
high quality standard tools, but one of our great strengths is having the
ability to produce equally high quality cutting tools, designed especially for
wormwheels, and they can be in the form of either a bore or shank type hob, for BS721
gear sets or your own customer specific requirement.
Acedes has invested a lot of time, money and knowledge, into developing a
bespoke design software to simulate the theoretical tool design to the finished
product.
The feedback from our existing
wormwheel hob customers is very positive, and in almost every new request , many
asking for dual lead, spiroid or cavex profiles, we have been able to offer
the quality tools that they were unable to obtain elsewhere.
Our unique design software was developed specifically to translate any profile,
including the wormwheel, into the equivalent hob, to enable you to produce your
required tooth profile, whilst maintaining the quality you demand.
·
Tangential or Plunge type
·
Module 0.5 to Module 8
·
Number of starts from 1 to 11
·
Profiles ZI, ZK, ZN, ZA, ZC
·
Bore type hobs with max. 180mm outside diameter and max 240mm long
·
Shank type hobs with max. 570mm overall length
·
Class A and Class AA with inspection reports
·
In all major High-speed Steels

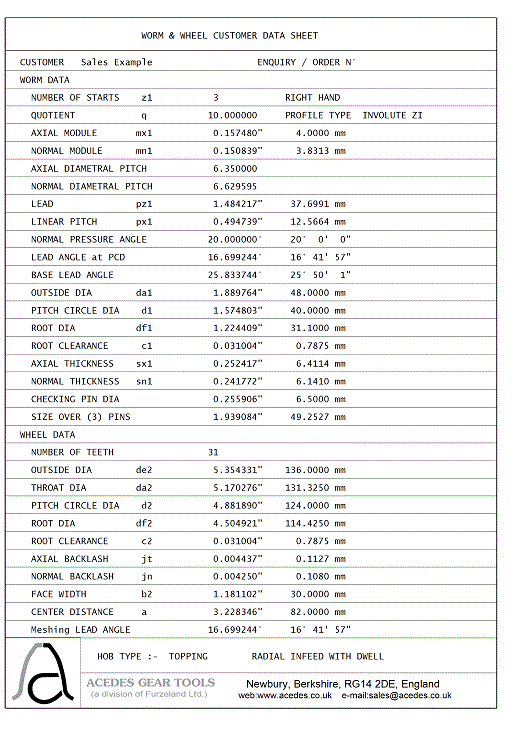

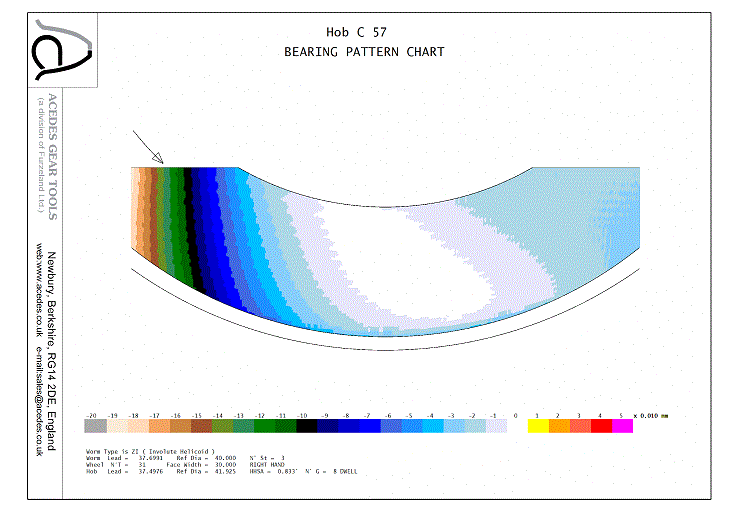

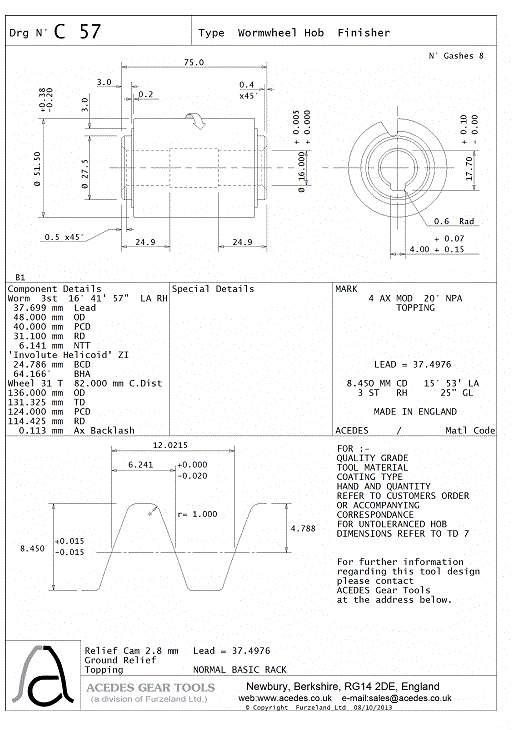

You will find below examples of our extensive documentation for wormwheels which
includes data sheet, hob drawing, bearing pattern and re-sharpening tables.
These can be downloaded below as PDF files
DataSheet.pdf
HobDrawing.pdf
BearingPattern.pdf
SettingAngles.pdf
Should you have any further questions or enquiries, or require a quote for an
existing or new project, please do not hesitate to contact us.
